Weather you have a 3 tier fountain, 2 tier fountain, or a 1 tier fountain, the instillation instructions work the same.
All fountains come with a pump housing that is submerged in the water with the pump situated inside.
Water is drawn in from the pump, then taken to the top of the feature, where the water will cascade back down the fountain and into the lower pool surround.
Regardless of what pool surround you choose.
The assembly of the centre fountain remains the same.
Fountain guidence instillation
instructions for a pond.
Step 1
Image 1-pump housing
As seen in the above picture, the pump housing is the first section to be placed within the centre of the pool. The pump fits inside the pump housing. The pump housing does allow for easy access to the pump for pump maintenance.
Step 3

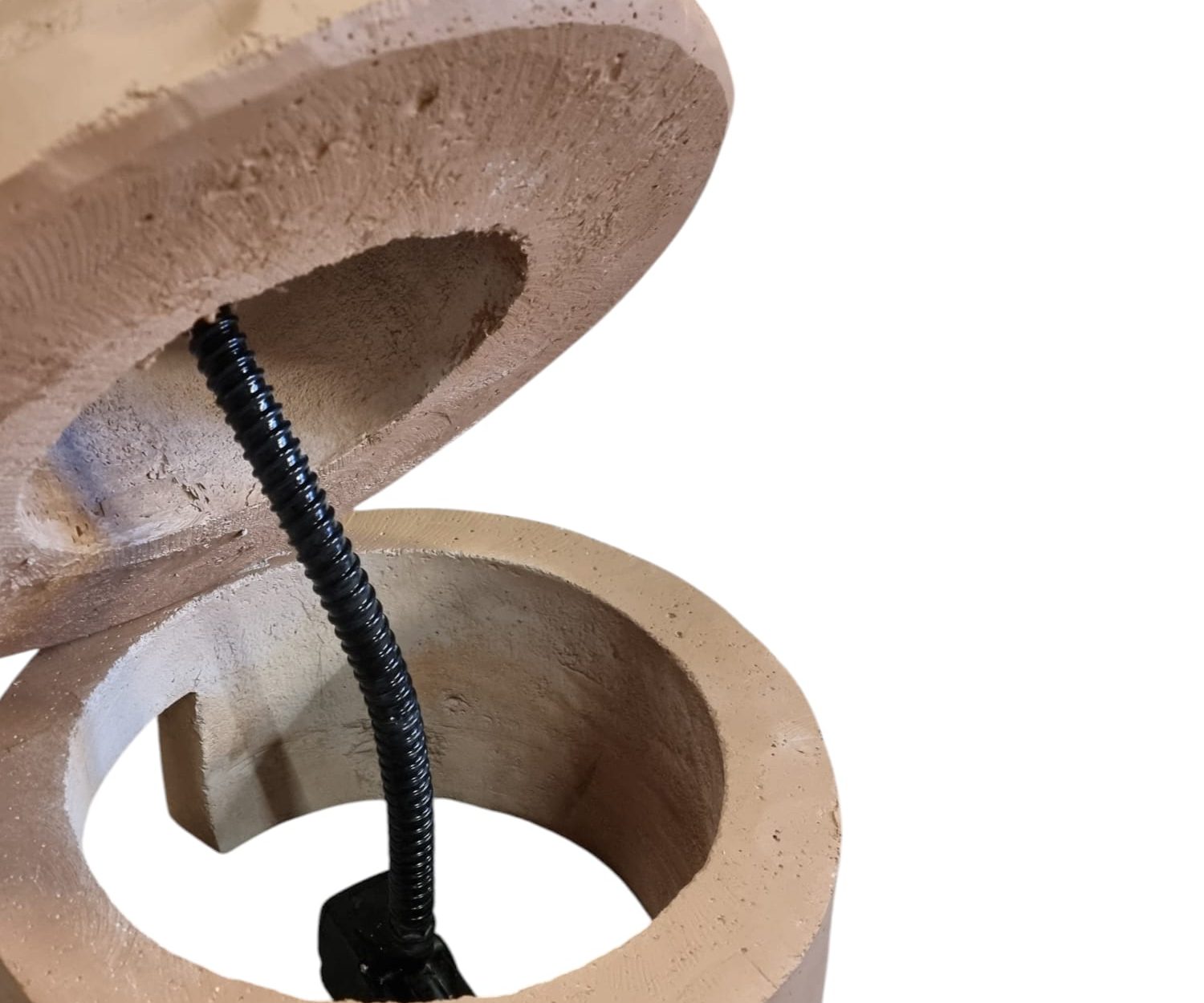

Image 3- large pedestal
The largest pedestal to sit on the pump housing, With the water hose feeding up through that pedestal.
Step 5

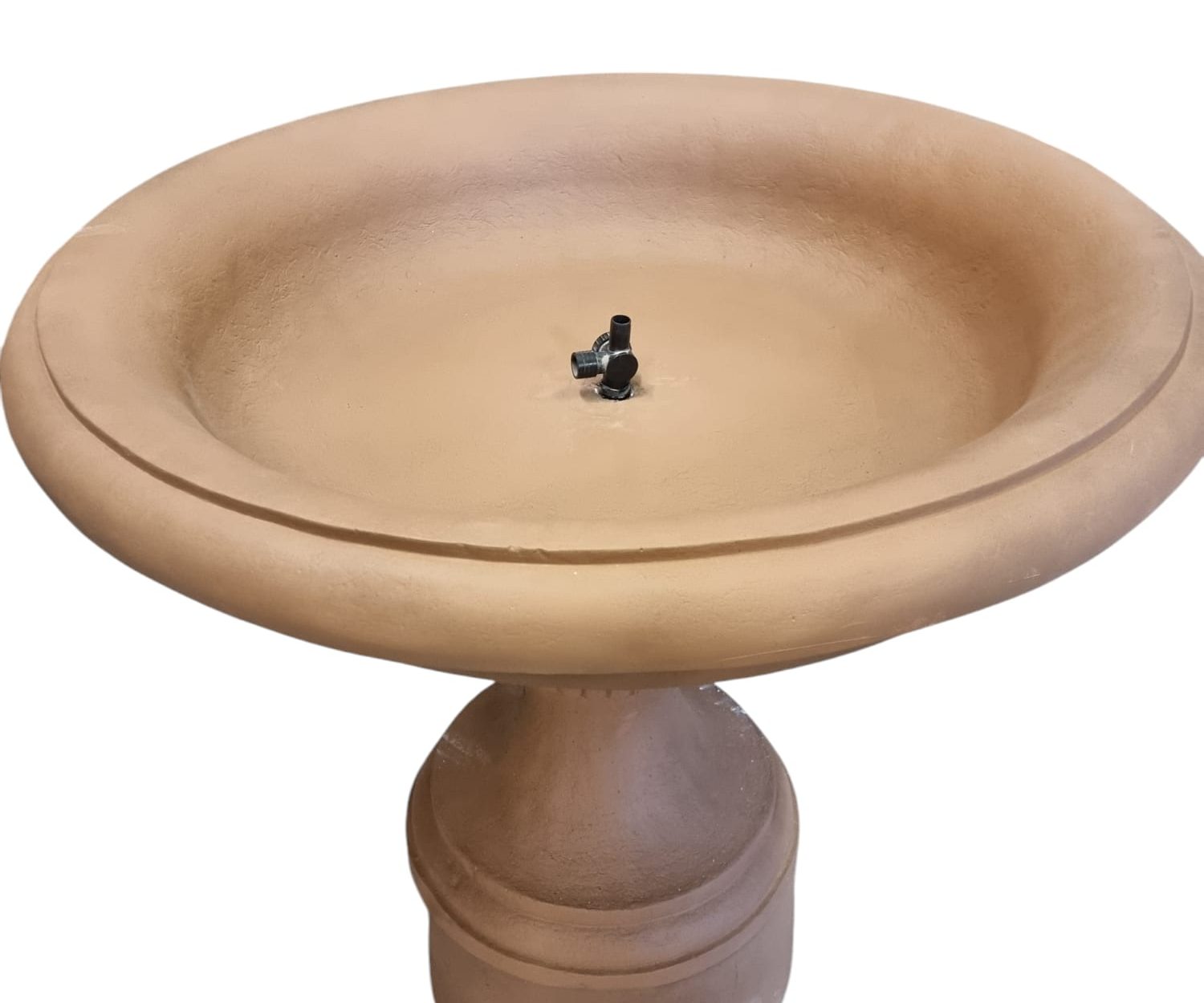

Image 5- 3 way tap
A 3 way tap connects on to the corrugated hose, this allows a percentage of water into the large bowl, and a percentage of water to be taken to the top of the fountain.
Step 7
Image 7- medium bowl, small pedestal
The medium bowl sits on top of the first pedestal. The next pedestal sits inside the medium bowl.
Step 2
Image 2- corrugated pipe work
Black corrugated pipe connects to the top of the pump, This will be fed through the base pedestal to the largest bowl.
Step 4
Image 4- large bowl
The pipe from the pump feeds up through the pedestal into the largest bowl.
Step 6
Image 6- tap housing and medium pedestal
the tap housing in the centre of the bowl, sits over the 3 way tap,
a length of hose then connects to the top of the 3 way tap. This hose then continues to the top of the fountain.
The medium pedestal will sit on top of the tap housing,
feeding the pipework through as you go.
Step 8
Image 8- small bowl, plus finial.
add the small bowl. The finial piece is the top finial over the last length of the hose,
INSTALLATION INSTRUCTIONS
As can be seen in the pictures below, these fountains are supplied with an exclusive to Geoff’s garden ornaments ltd. fibreglass base pool that incorporates an edging flange on which the base pool blocks are assembled.
Lay the fibreglass pool on to a level, flat, solid, surface. You will need a spirit level to ensure the base is sitting level.
The pump sits in the centre of the fibre glass pool and the cable gets sealed in to the provisions made for the power supply. The pump has 10 meters of cable that exits at the side of the pool at the bottom for easy electrical installation. This system also allows for easy replacement of the pump, should it ever need replacing.
The pump is hidden away in the base of the fountain.
Stack your fountain in the centre of the pool, all our fountains are pre-levelled at our factory, but some levelling may be required on site.
Whilst you are filling the base pool with water it is time to assemble the edging blocks. The outer edge of the fibreglass is very strong and rigid and has been manufactured by us to a very high standard. Fibreglass is an extremely strong material, in fact it’s not only used as ponds to hold thousands of gallons of water but it’s also used to build most of the boats cruising up and down our shores, as well as many other uses including flat roofing on houses.
We have spent 6 months designing and testing this product to ensure that every finished fountain not only stands the test of time but also looks as if it had been professionally installed.
This product will be delivered on a week day of your choice by one of our own delivery drivers, ensuring a smooth process from payment to delivery.
We recommend using sump pumps to perform water changes as an when required, these can be purchased from our accessories page.
CUSTOMER INSTALLATION GALLERY
These pictures from a recent installation of one of our premier garden water fountains. The fibreglass was laid straight onto earth with the fountain and pool put straight into the fibreglass base.
